Пружинное упорное стопорное кольцо (DIN 471) на вал, применяемое для фиксации на стержень – это крепежное изделие, получившее широкое применение в промышленности во избежание смещения различных деталей относительно друг друга. Пружинное упорное кольцо стопорное дин 471 на вал, применяемое для фиксации на стержень – это крепежное изделие, получившее широкое применение в промышленности во избежание смещения различных деталей относительно друг друга. Наружное кольцо дин 471 преимущество изготавливается в форме А. ДИН 471 - это эксцентрический стопорный элемент. Данное кольцо полностью соответствует российскому стандарту в производстве стопорных колец ГОСТ 13942. Аналог: ГОСТ 13942
Такие стопорные кольца обладают высокой стойкостью к коррозии и имеют хорошую защиту от агрессивных сред. Создают надежное скрепление элементов между собой, за счет увеличения площади соприкосновения с элементом. Имеют различные диаметры от М3 до М120.
Размеры вала | Размеры кольца в свободном состоянии | |||||||
---|---|---|---|---|---|---|---|---|
d1 | d2 | m | n | s | d3 | amax | ∼b | d5min |
4 | 3.8 | 0.50 | 0.3 | 0.4 | 3.7 | 2.2 | 0.9 | 1 |
5 | 4.8 | 0.70 | 0.3 | 0.6 | 4.7 | 2.5 | 1.1 | 1 |
6 | 5.7 | 0.80 | 0.5 | 0.7 | 5.6 | 2.7 | 1.3 | 1.2 |
7 | 6.7 | 0.90 | 0.5 | 0.8 | 6.5 | 3.1 | 1.4 | 1.2 |
8 | 7.6 | 0.90 | 0.6 | 0.9 | 7.4 | 3.2 | 1.5 | 1.2 |
9 | 8.8 | 1.10 | 0.6 | 1 | 8.4 | 3.3 | 1.7 | 1.2 |
10 | 9.6 | 1.10 | 0.6 | 1 | 9.3 | 3.3 | 1.8 | 1.5 |
11 | 10.5 | 1.10 | 0.8 | 1 | 10.2 | 3.3 | 1.8 | 1.5 |
12 | 11.5 | 1.10 | 0.8 | 1 | 11.0 | 3.3 | 1.8 | 1.7 |
13 | 12.4 | 1.10 | 0.9 | 1 | 11.9 | 3.4 | 2.0 | 1.7 |
14 | 13.4 | 1.10 | 0.9 | 1 | 12.9 | 3.5 | 2.1 | 1.7 |
15 | 14.3 | 1.10 | 1.1 | 1 | 13.8 | 3.6 | 2.2 | 1.7 |
16 | 15.2 | 1.10 | 1.2 | 1 | 14.7 | 3.7 | 2.2 | 1.7 |
17 | 16.2 | 1.10 | 1.2 | 1 | 15.7 | 3.8 | 2.3 | 1.7 |
18 | 17.0 | 1.30 | 1.5 | 1.2 | 16.5 | 3.9 | 2.4 | 1.7 |
19 | 18.0 | 1.30 | 1.5 | 1.2 | 17.5 | 3.9 | 2.5 | 2 |
20 | 19.0 | 1.30 | 1.5 | 1.2 | 18.5 | 4.0 | 2.6 | 2 |
21 | 20.0 | 1.30 | 1.5 | 1.2 | 19.5 | 4.1 | 2.7 | 2 |
22 | 21.0 | 1.30 | 1.5 | 1.2 | 20.5 | 4.2 | 2.8 | 2 |
23 | 22.0 | 1.30 | 1.7 | 1.2 | 21.5 | 4.3 | 2.9 | 2 |
d1 | s | d3 | а | b | d5 | d2 | m | n | d4 |
---|---|---|---|---|---|---|---|---|---|
3 | 0.4 | 2.7 | 1.9 | 0.8 | 1 | 2.8 | 0.5 | 0.3 | 7 |
4 | 0.4 | 3.7 | 2.2 | 0.9 | 1 | 3.8 | 0.5 | 0.3 | 8.6 |
5 | 0.6 | 4.7 | 2.5 | 1.1 | 1 | 4.8 | 0.7 | 0.3 | 10.3 |
6 | 0.7 | 5.6 | 2.7 | 1.3 | 1.2 | 5.7 | 0.8 | 0.5 | 11.7 |
7 | 0.8 | 6.5 | 3.1 | 1.4 | 1.2 | 6.7 | 0.9 | 0.5 | 13.5 |
8 | 0.8 | 7.4 | 3.2 | 1.5 | 1.2 | 7.6 | 0.9 | 0.6 | 14.7 |
9 | 1 | 8.4 | 3.3 | 1.7 | 1.2 | 8.6 | 1.1 | 0.6 | 16 |
10 | 1 | 9.3 | 3.3 | 1.8 | 1.5 | 9.6 | 1.1 | 0.6 | 17 |
11 | 1 | 10.2 | 3.3 | 1.8 | 1.5 | 10.5 | 1.1 | 0.8 | 18 |
12 | 1 | 11 | 3.3 | 1.8 | 1.7 | 11.5 | 1.1 | 0.8 | 19 |
13 | 1 | 11.9 | 3.4 | 2 | 1.7 | 12.4 | 1.1 | 0.9 | 20.2 |
14 | 1 | 12.9 | 3.5 | 2.1 | 1.7 | 13.4 | 1.1 | 0.9 | 21.4 |
15 | 1 | 13.8 | 3.6 | 2.2 | 1.7 | 14.3 | 1.1 | 1.1 | 22.6 |
16 | 1 | 14.7 | 3.7 | 2.2 | 1.7 | 15.2 | 1.1 | 1.2 | 23.8 |
17 | 1 | 15.7 | 3.8 | 2.3 | 1.7 | 16.2 | 1.1 | 1.2 | 25 |
18 | 1.2 | 16.5 | 3.9 | 2.4 | 2 | 17 | 1.3 | 1.5 | 26.2 |
19 | 1.2 | 17.5 | 3.9 | 2.5 | 2 | 18 | 1.3 | 1.5 | 27.2 |
20 | 1.2 | 18.5 | 4 | 2.6 | 2 | 19 | 1.3 | 1.5 | 28.4 |
d1 | s | d3 | а | b | d5 | d2 | m | n | d4 |
21 | 1.2 | 19.5 | 4.1 | 2.7 | 2 | 20 | 1.3 | 1.5 | 29.6 |
22 | 1.2 | 20.5 | 4.2 | 2.8 | 2 | 21 | 1.3 | 1.5 | 30.8 |
24 | 1.2 | 22.2 | 4.4 | 3 | 2 | 22.9 | 1.3 | 1.7 | 33.2 |
25 | 1.2 | 23.2 | 4.4 | 3 | 2 | 23.9 | 1.3 | 1.7 | 34.2 |
26 | 1.2 | 24.2 | 4.5 | 3.1 | 2 | 24.9 | 1.3 | 1.7 | 35.5 |
28 | 1.5 | 25.9 | 4.7 | 3.2 | 2 | 26.6 | 1.6 | 2.1 | 37.9 |
29 | 1.5 | 26.9 | 4.8 | 3.4 | 2 | 27.6 | 1.6 | 2.1 | 39.1 |
30 | 1.5 | 27.9 | 5 | 3.5 | 2 | 28.6 | 1.6 | 2.1 | 40.5 |
32 | 1.5 | 29.6 | 5.2 | 3.6 | 2.5 | 30.3 | 1.6 | 2.6 | 43 |
34 | 1.5 | 31.5 | 5.4 | 3.8 | 2.5 | 32.3 | 1.6 | 2.6 | 45.4 |
35 | 1.5 | 32.2 | 5.6 | 3.9 | 2.5 | 33 | 1.6 | 3 | 46.8 |
36 | 1.75 | 33.2 | 5.6 | 4 | 2.5 | 34 | 1.85 | 3 | 47.8 |
38 | 1.75 | 35.2 | 5.8 | 4.2 | 2.5 | 36 | 1.85 | 3 | 50.2 |
40 | 1.75 | 36.5 | 6 | 4.4 | 2.5 | 37.5 | 1.85 | 3.8 | 52.6 |
42 | 1.75 | 38.5 | 6.5 | 4.5 | 2.5 | 39.5 | 1.85 | 3.8 | 55.7 |
45 | 1.75 | 41.5 | 6.7 | 4.7 | 2.5 | 42.5 | 1.85 | 3.8 | 59.1 |
48 | 1.75 | 44.5 | 6.9 | 5 | 2.5 | 45.5 | 1.85 | 3.8 | 62.5 |
50 | 2 | 45.8 | 6.9 | 5.1 | 2.5 | 47 | 2.15 | 4.5 | 64.5 |
d1 | s | d3 | а | b | d5 | d2 | m | n | d4 |
52 | 2 | 47.8 | 7 | 5.2 | 2.5 | 49 | 2.15 | 4.5 | 66.7 |
55 | 2 | 50.8 | 7.2 | 5.4 | 2.5 | 52 | 2.15 | 4.5 | 70.2 |
56 | 2 | 51.8 | 7.3 | 5.5 | 2.5 | 53 | 2.15 | 4.5 | 71.6 |
58 | 2 | 53.8 | 7.3 | 5.6 | 2.5 | 55 | 2.15 | 4.5 | 73.6 |
60 | 2 | 55.8 | 7.4 | 5.8 | 2.5 | 57 | 2.15 | 4.5 | 75.6 |
62 | 2 | 57.8 | 7.5 | 6 | 2.5 | 59 | 2.15 | 4.5 | 77.8 |
63 | 2 | 58.8 | 7.6 | 6.2 | 2.5 | 60 | 2.15 | 4.5 | 79 |
65 | 2.5 | 60.8 | 7.8 | 6.3 | 3 | 62 | 2.65 | 4.5 | 81.4 |
68 | 2.5 | 63.5 | 8 | 6.5 | 3 | 65 | 2.65 | 4.5 | 84.8 |
70 | 2.5 | 65.5 | 8.1 | 6.6 | 3 | 67 | 2.65 | 4.5 | 87 |
72 | 2.5 | 67.5 | 8.2 | 6.8 | 3 | 69 | 2.65 | 4.5 | 89.2 |
75 | 2.5 | 70.5 | 8.4 | 7 | 3 | 72 | 2.65 | 4.5 | 92.7 |
78 | 2.5 | 73.5 | 8.6 | 7.3 | 3 | 75 | 2.65 | 4.5 | 96.1 |
80 | 2.5 | 74.5 | 8.6 | 7.4 | 3 | 76.5 | 2.65 | 5.3 | 98.1 |
82 | 2.5 | 76.5 | 8.7 | 7.6 | 3 | 78.5 | 2.65 | 5.3 | 100.3 |
85 | 3 | 79.5 | 8.7 | 7.8 | 3.5 | 81.5 | 3.15 | 5.3 | 103.3 |
88 | 3 | 82.5 | 8.8 | 8 | 3.5 | 84.5 | 3.15 | 5.3 | 106.5 |
90 | 3 | 84.5 | 8.8 | 8.2 | 3.5 | 86.5 | 3.15 | 5.3 | 108.5 |
100 | 3 | 94.5 | 9.6 | 9 | 3.5 | 96.5 | 3.15 | 5.3 | 120.2 |
d1 | s | d3 | а | b | d5 | d2 | m | n | d4 |
105 | 4 | 98 | 9.9 | 9.3 | 3.5 | 101 | 4.15 | 6 | 125.8 |
110 | 4 | 103 | 10.1 | 9.6 | 3.5 | 106 | 4.15 | 6 | 131.2 |
115 | 4 | 108 | 10.6 | 9.8 | 3.5 | 111 | 4.15 | 6 | 137.3 |
120 | 4 | 113 | 11 | 10.2 | 3.5 | 116 | 4.15 | 6 | 143.1 |
125 | 4 | 118 | 11.4 | 10.4 | 4 | 121 | 4.15 | 6 | 149 |
130 | 4 | 123 | 11.6 | 10.7 | 4 | 126 | 4.15 | 6 | 154.4 |
135 | 4 | 128 | 11.8 | 11 | 4 | 131 | 4.15 | 6 | 159.8 |
140 | 4 | 133 | 12 | 11.2 | 4 | 136 | 4.15 | 6 | 165.2 |
145 | 4 | 138 | 12.2 | 11.5 | 4 | 141 | 4.15 | 6 | 170.6 |
150 | 4 | 142 | 13 | 11.8 | 4 | 145 | 4.15 | 7.5 | 177.3 |
155 | 4 | 146 | 13 | 12 | 4 | 150 | 4.15 | 7.5 | 182.3 |
160 | 4 | 151 | 13.3 | 12.2 | 4 | 155 | 4.15 | 7.5 | 188 |
165 | 4 | 155.5 | 13.5 | 12.5 | 4 | 160 | 4.15 | 7.5 | 193.4 |
170 | 4 | 160.5 | 13.5 | 12.9 | 4 | 165 | 4.15 | 7.5 | 198.4 |
175 | 4 | 165.5 | 13.5 | 12.9 | 4 | 170 | 4.15 | 7.5 | 203.4 |
180 | 4 | 170.5 | 14.2 | 13.5 | 4 | 175 | 4.15 | 7.5 | 210 |
185 | 4 | 175.5 | 14.2 | 13.5 | 4 | 180 | 4.15 | 7.5 | 215 |
d1 | s | d3 | а | b | d5 | d2 | m | n | d4 |
190 | 4 | 180.5 | 14.2 | 14 | 4 | 185 | 4.15 | 7.5 | 220 |
195 | 4 | 185.5 | 14.2 | 14 | 4 | 190 | 4.15 | 7.5 | 225 |
200 | 4 | 190.5 | 14.2 | 14 | 4 | 195 | 4.15 | 7.5 | 230 |
210 | 5 | 198 | 14.2 | 14 | 4 | 204 | 5.15 | 9 | 240 |
220 | 5 | 208 | 14.2 | 14 | 4 | 214 | 5.15 | 9 | 250 |
230 | 5 | 218 | 14.2 | 14 | 4 | 224 | 5.15 | 9 | 260 |
240 | 5 | 228 | 14.2 | 14 | 4 | 234 | 5.15 | 9 | 270 |
250 | 5 | 238 | 14.2 | 14 | 4 | 244 | 5.15 | 9 | 280 |
260 | 5 | 245 | 16.2 | 16 | 5 | 252 | 5.15 | 12 | 294 |
270 | 5 | 255 | 16.2 | 16 | 5 | 262 | 5.15 | 12 | 304 |
280 | 5 | 265 | 16.2 | 16 | 5 | 272 | 5.15 | 12 | 314 |
290 | 5 | 275 | 16.2 | 16 | 5 | 282 | 5.15 | 12 | 324 |
300 | 5 | 285 | 16.2 | 16 | 5 | 292 | 5.15 | 12 | 334 |
d1 | s | d3 | а | b | d5 | d2 | m | n | d4 |
d1 | s | d3 | а | b | d5 | d2 | m | n | d4 |
---|---|---|---|---|---|---|---|---|---|
15 | 1.5 | 13.8 | 4.8 | 2.4 | 2 | 14.3 | 1.6 | 1.1 | 25.1 |
16 | 1.5 | 14.7 | 5 | 2.5 | 2 | 15.2 | 1.6 | 1.2 | 26.5 |
20 | 1.75 | 18.5 | 5.5 | 3 | 2 | 19 | 1.85 | 1.5 | 31.6 |
25 | 2 | 23.2 | 6.4 | 3.4 | 2 | 23.9 | 2.15 | 1.7 | 38.5 |
30 | 2 | 27.9 | 6.5 | 4.1 | 2 | 28.6 | 2.15 | 2.1 | 43.7 |
35 | 2.5 | 32.2 | 6.7 | 4.2 | 2.5 | 33 | 2.65 | 3 | 49.1 |
40 | 2.5 | 36.5 | 7 | 4.4 | 2.5 | 37.5 | 2.65 | 3.8 | 54.7 |
45 | 2.5 | 41.5 | 7.5 | 4.7 | 2.5 | 42.5 | 2.65 | 3.8 | 60.8 |
50 | 3 | 45.8 | 8 | 5.1 | 2.5 | 47 | 3.15 | 4.5 | 66.8 |
55 | 3 | 50.8 | 8.5 | 5.4 | 2.5 | 52 | 3.15 | 4.5 | 72.9 |
60 | 3 | 55.8 | 9 | 5.8 | 2.5 | 57 | 3.15 | 4.5 | 78.9 |

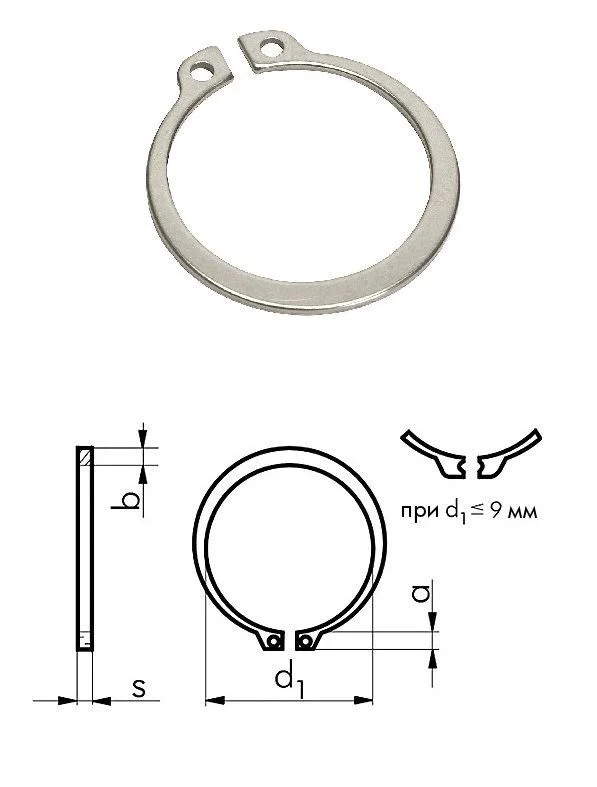

Обозначения:
d1 - диаметр вала
s - толщина кольца
d3 - внутренний диаметр кольца
а - ширина ушка
b - макс. ширина кольца
d5 - диаметр отверстия
m - ширина канавки
n - высота выступа
d4 - диаметр окружности
